| LV (H/40°C) | 3500 – 5200 kVA* |
| MV (F/40°C) | 3200 – 5000 kVA |
| HV (F/40°C) | 2900 – 4500 kVA |
| Voltage | 400 – 480V |
| Poles | 4 |
| Speed | 1500 – 1800 rpm |
| Shaft height | 500 mm |
| Max efficiency | 97.5 % |
| Excitation | AREP + PMI |
| Regulation | D550 |
* kVA/50Hz – kW/60Hz
(Discrepancies may occur, consult catalogue for exact figures)
Applications
 Data center |
 Oil & Gas |
 Industrial |
 Powerplants |
 Marine |
Benefits

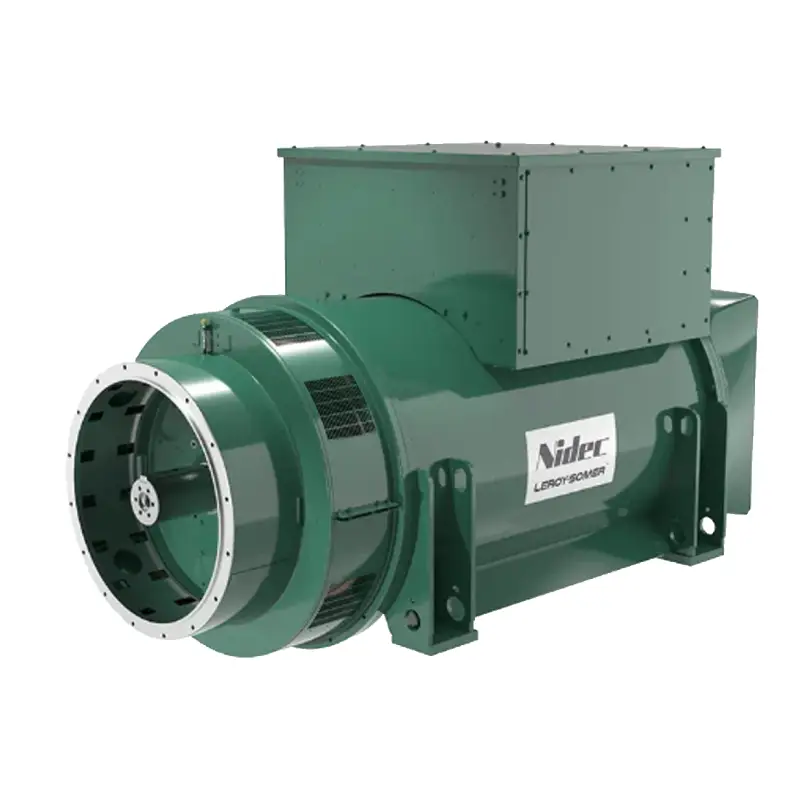

The LSA Series industrial alternators are built for performance and intensive use.
They are engineered to withstand the test of time and extreme conditions, sourcing the best materials and focusing on sturdy construction.
LSA alternators are also highly customizable and can be adapted to fit any specification.
