| Power | 70 – 200 kVA* |
| Voltage | 220 – 480V |
| Poles | 4 |
| Speed | 1500 – 1800 rpm |
| Shaft height | 270 mm |
| Max efficiency | 95.8 % |
| Excitation | SHUNT / AREP+ / PMG |
| Regulation | R120 / R180 (standard) |
* kVA/50Hz – kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
 Stand-by |
 Industrial |
 Telecom |
 Commercial |
Benefits
PERFORMANCE

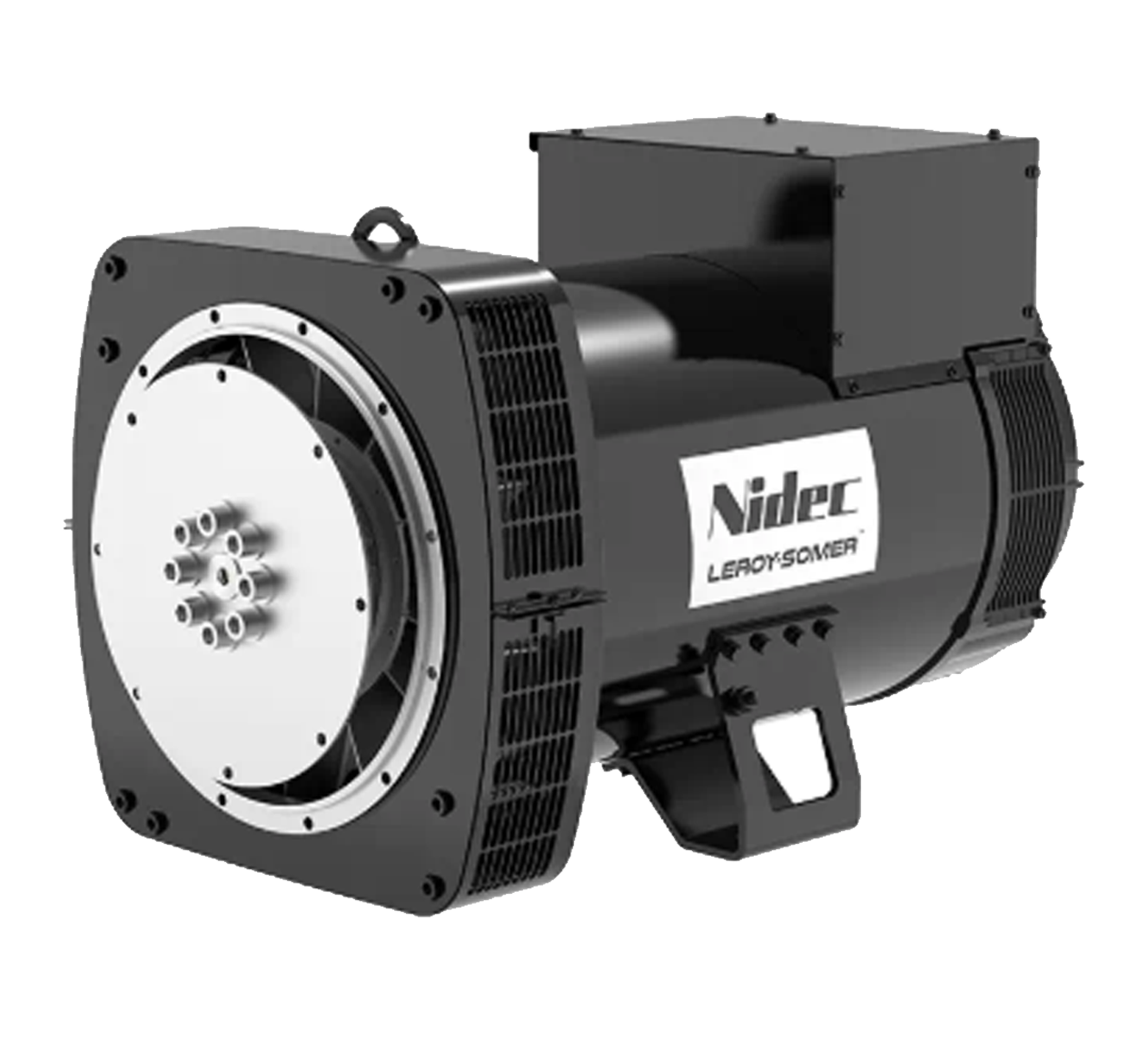

The TAL alternator range is designed to meet the general needs of stand-by and prime power applications in telecom, commercial and industrial markets.
RELIABLE
All products in the TAL series are manufactured to Leroy-Somer high quality standards and are built with class H insulation materials.
| Insulation class | H |
| Winding pitch | 2/3 (winding 6S) |
| Number of wires | 6 |
| Protection | IP 23 |
| Altitude | ≤ 1000 m |
| Overspeed | 2250 rpm |
| Air flow | 0.29m3/s, 50 Hz – 0.34m3/s, 60 Hz |
| Excitation system / AVR type | SHUNT : R120 AREP+ or PMG : R180 |
| Voltage regulation (Steady state) | R120 : ±1% R180 : ±0.5% |
| Flex plate / Flange | 1 | 2 | 3 | 4 |
| 14 | ● | – | – | – |
| 11 1/2 | ● | ● | ● | – |
| 10 | ● | ● | ● | ● |
| 8 | – | – | ● | ● |
