| Power | 410 – 660 kVA* |
| Voltage | 220 – 480 V |
| Poles | 4 |
| Speed | 1500 – 1800 rpm |
| Shaft height | 355 mm |
| Max efficiency | 96.8 % |
| Excitation | SHUNT / AREP+ / PMG |
| Regulation | R180 / R150 (standard) |
* kVA/50Hz – kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
 Stand-by |
 Industrial |
 Telecom |
 Commercial |
Benefits
PERFORMANCE

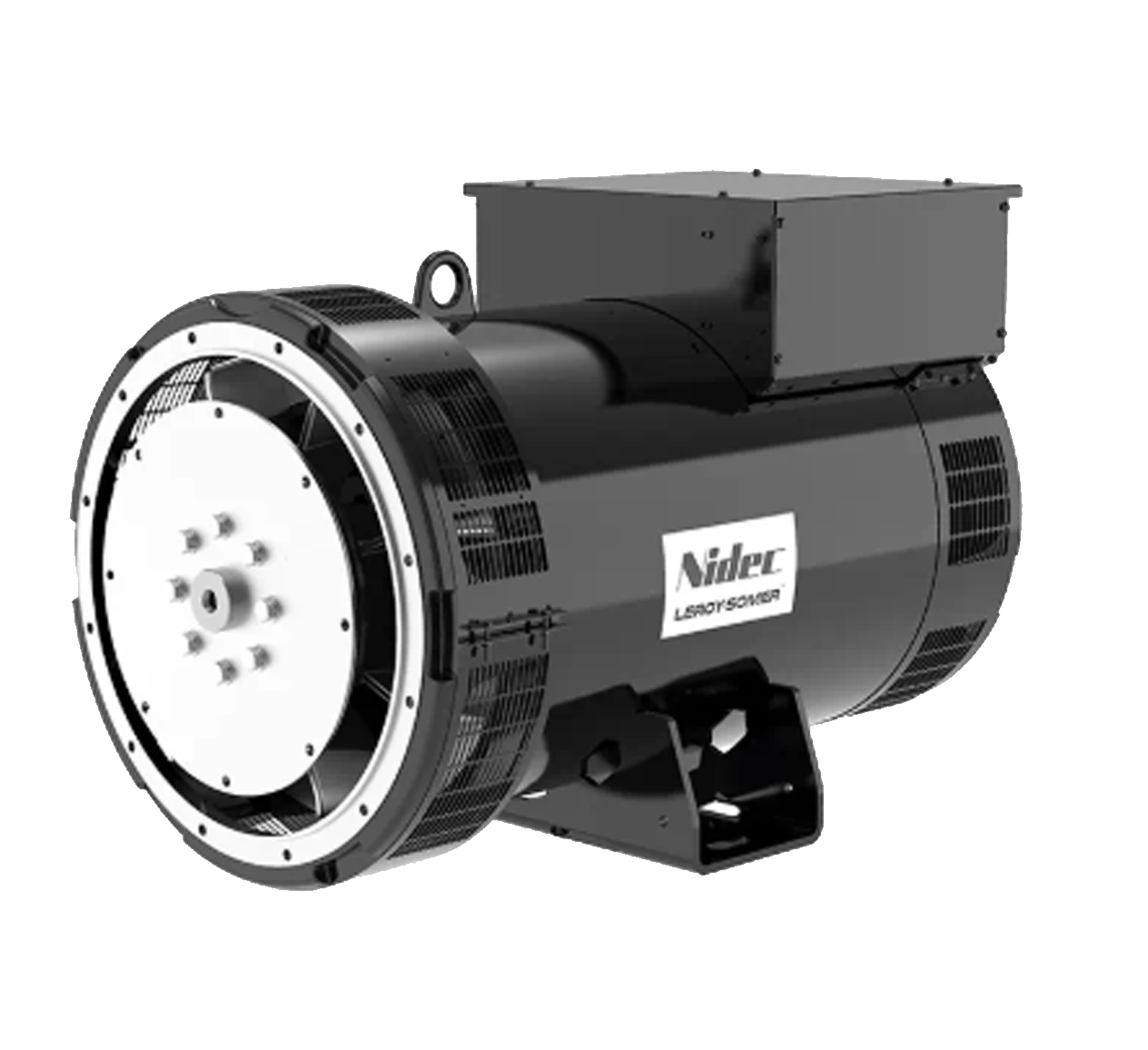

The TAL alternator range is designed to meet the needs of general applications such as prime power and stand-by.
RELIABLE
All products in the TAL series are manufactured to Leroy-Somer high quality standards and are built with class H insulation materials.
| Insulation class | H |
| Winding pitch | 2/3 (wind.6S) |
| Number of wires | 6-wire |
| Protection | IP 23 |
| Altitude | ≤ 1000 m |
| Overspeed | 2250 rpm |
| Air flow | 0.9m3/s, 50 Hz – 1.1 m3/s, 60 Hz |
| Excitation system / AVR type | SHUNT : R150 AREP+ or PMG : R180 |
| Voltage regulation (Steady state) | R150 : ±0.8% R180 : ±0.5% |
| Flex plate / Flange | 11 ½ | 14 | 18 |
|---|---|---|---|
| 1 | ● | ● | – |
| ½ | – | ● | – |
| 0 | – | ● | ● |
